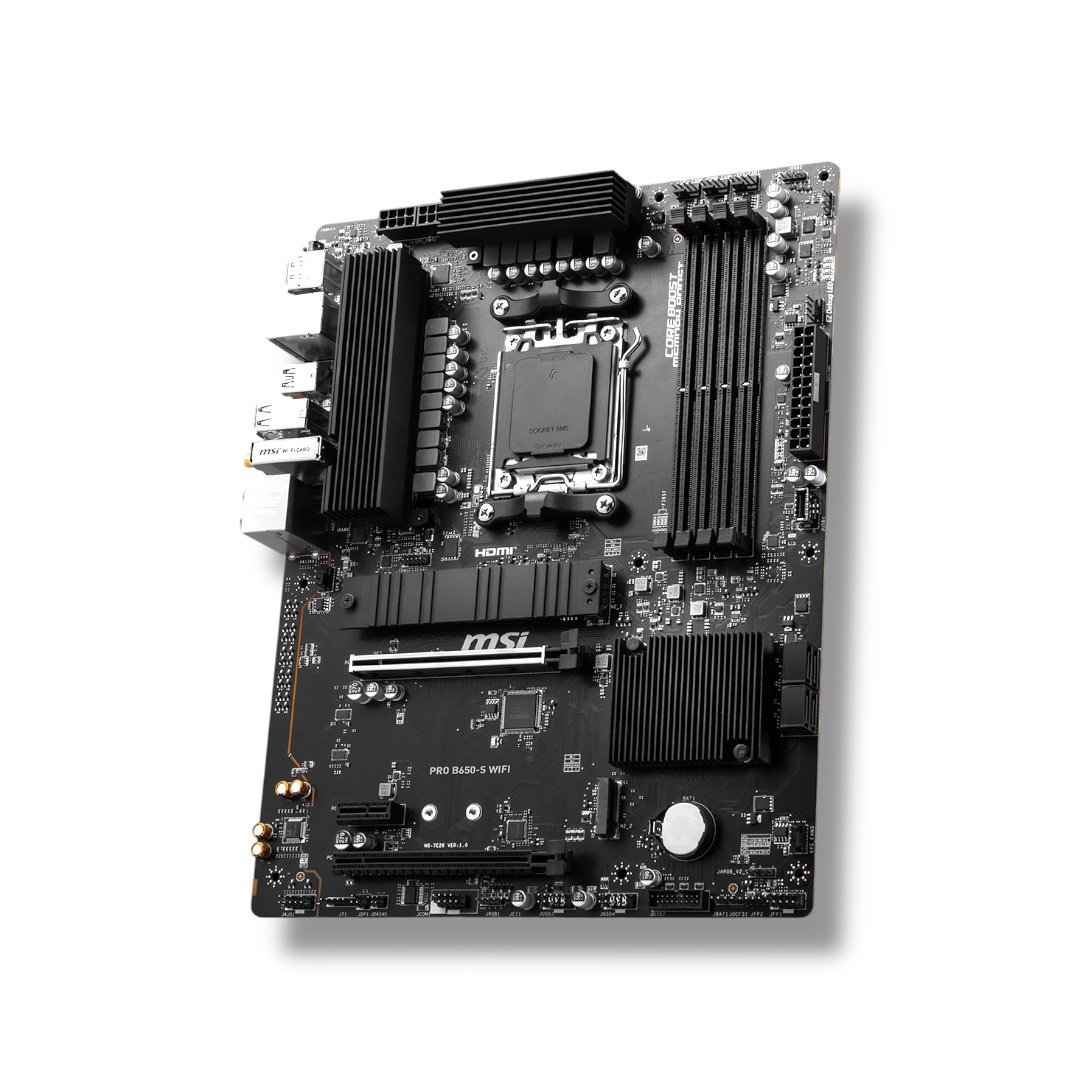

MSI PRO B650-S WiFi Motherboard

Information:

B650-S WiFi ProSeries support AMD Ryzen 9000/8000/7000 Series AM5 DDR5, PCIe 4.0 M.2 Slots Wi-Fi 6E, Bluetooth 5.3

Description:

SKU: 911-7E26-019
📍Description

▸ Processor Support:  Compatible with AMD Ryzen™ 7000, 8000, and 9000 Series Desktop Processors on AM5.
 ▸ Chipset & Power:  Built on the AMD B650 chipset with an enhanced 12+2 Duet Rail Power System featuring P-PAK, dual 8‑pin CPU power connectors, Core Boost, and Memory Boost.
 ▸ Memory:  4 DDR5 DIMM slots supporting up to 192GB; speeds from 4800 MHz (JEDEC) up to 7200+ MHz (OC) with AMD EXPO support.
 ▸ Expansion & Storage:
  - 2 PCIe 4.0 slots (one x16 from CPU and one x4 from chipset) plus 1 PCIe 3.0 x1 slot.
  - 4 SATA 6 Gb/s ports and 2 M.2 slots (both supporting PCIe 4.0 x4; M.2 Shield Frozr on each for thermal protection).
 ▸ Connectivity:  2.5G LAN via Realtek 8125BG and pre‑installed Wi‑Fi 6E with Bluetooth 5.3 for fast, stable network connections.
 ▸ Audio:  Immersive studio‑grade Audio Boost with the Realtek ALC897 codec delivering 7.1‑channel high‑definition sound.
 ▸ I/O & Features:
  - Rear I/O includes multiple USB ports (USB 3.2 Gen2×2 Type‑C, Gen2 and Gen1 Type‑A), plus DisplayPort and HDMI outputs.
  - Internal headers for additional USB, RGB LED, TPM (supports TPM 2.0), fan controls, and more; also features a Flash BIOS Button for hassle‑free updates.
 ▸ Cooling & Build:  Premium thermal solution with MOSFET thermal pads rated at 7W/mK and a robust 6‑layer PCB constructed with 2oz thickened copper.
 ▸ Form Factor:  Standard ATX design (12.0″ x 9.6″) for versatile system builds.
 ▸ Software:  Supports Windows® 11 for a modern operating experience.

 A high‑performance, feature‑rich motherboard engineered for gamers and power users—delivering robust connectivity, ultrafast memory support, advanced cooling, and immersive audio on AMD’s cutting‑edge AM5 platform.
