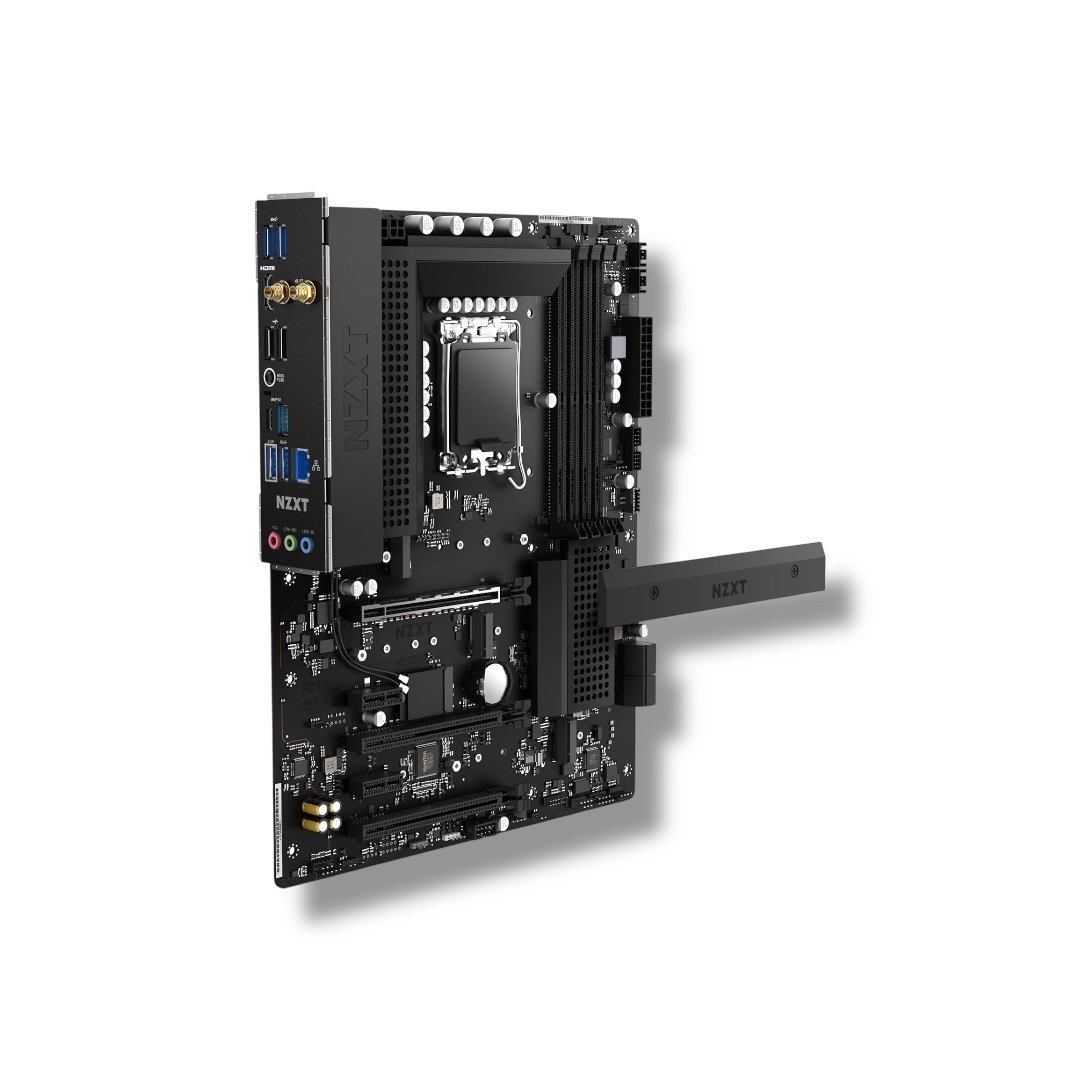

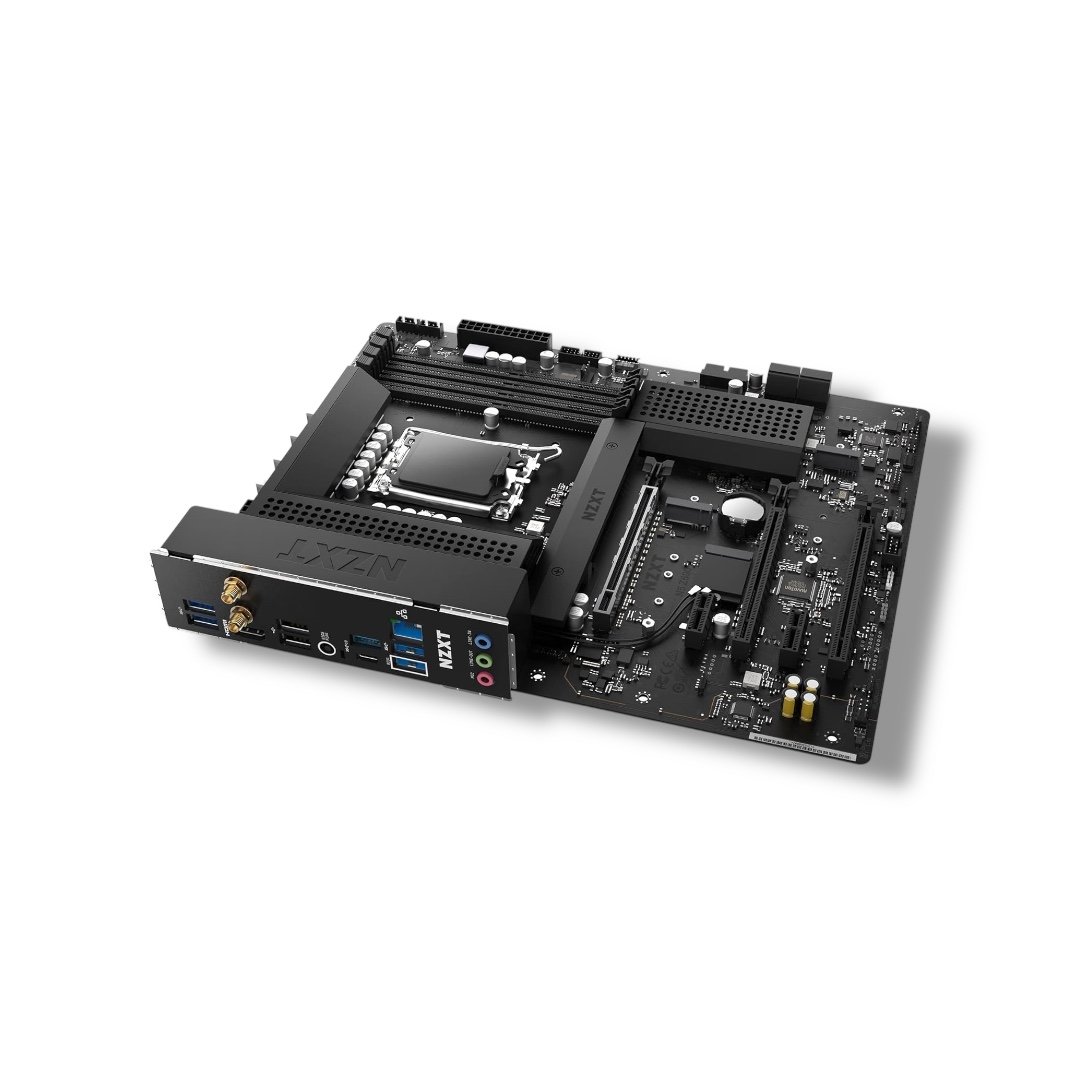

NZXT N5 Z690 Motherboard

Information:

NZXT N5 Z690 DDR4 Supports 12th/13th/14th Gen CPUs ATX Gaming Motherboard WiFi 6E Connectivity

Description:

SKU: N5-Z69XT-B1
📍Description

▸ Motherboard:  Designed with the Intel Z690 chipset, the NZXT N5 Z690 offers a sleek, minimalist PCB in black or white with an integrated heat spreader for top NVMe drive performance.
 ▸ Processor Support:  Compatible with Intel Core 12th, 13th, and 14th Gen CPUs (LGA 1700), featuring Intel Hybrid Technology and Turbo Boost Max 3.0.
 ▸ Memory:  4 DDR4 DIMM slots supporting dual-channel memory up to 128GB with speeds from 2133 to 3200 MHz.
 ▸ Expansion & Storage:
  - PCIe: 1 PCIe 5.0 x16 slot (supports full x16 mode) plus additional PCIe slots for versatile expansion.
  - Storage: 4 SATA 6Gb/s ports and 4 M.2 slots (supporting PCIe 4.0 and PCIe 3.0 modes, plus SATA) with Intel Optane readiness and RAID 0/1/5/10 support.
 ▸ Video & Connectivity:
  - Onboard Intel Iris Xe Graphics for visual output; rear I/O includes HDMI, LAN, USB 3.2 Gen2 Type-A/Type-C, USB 3.1 Gen1, and USB 2.0 ports, plus multiple audio jacks.
  - Networking via Realtek RTL8125BG 2.5GbE LAN, Wi‑Fi 6E, and Bluetooth 5.2 for high‑speed, reliable connections.
 ▸ Smart Controls & Build:  Features intuitive control of four RGB lighting channels and six fan channels via CAM, along with an integrated rear I/O shield and strategically placed headers for an easy build process.

 A high‑performance, feature‑rich ATX gaming motherboard engineered for next‑gen connectivity, immersive multimedia, and streamlined installation—ideal for building a stunning gaming PC.
