DeepCool CH170 DIGITAL WH

Information:

💻 DeepCool CH170 DIGITAL WH Mini-ITX Case | Ultra-Compact | High-Airflow Mesh | Digital Display Base | 240mm Radiator Support | Tempered Glass | Type-C | USB 3.0 | WHITE

Description:

📦 SKU: R-CH170-WHNPI0D-G-1
🎯 Features – DeepCool CH170 DIGITAL WH

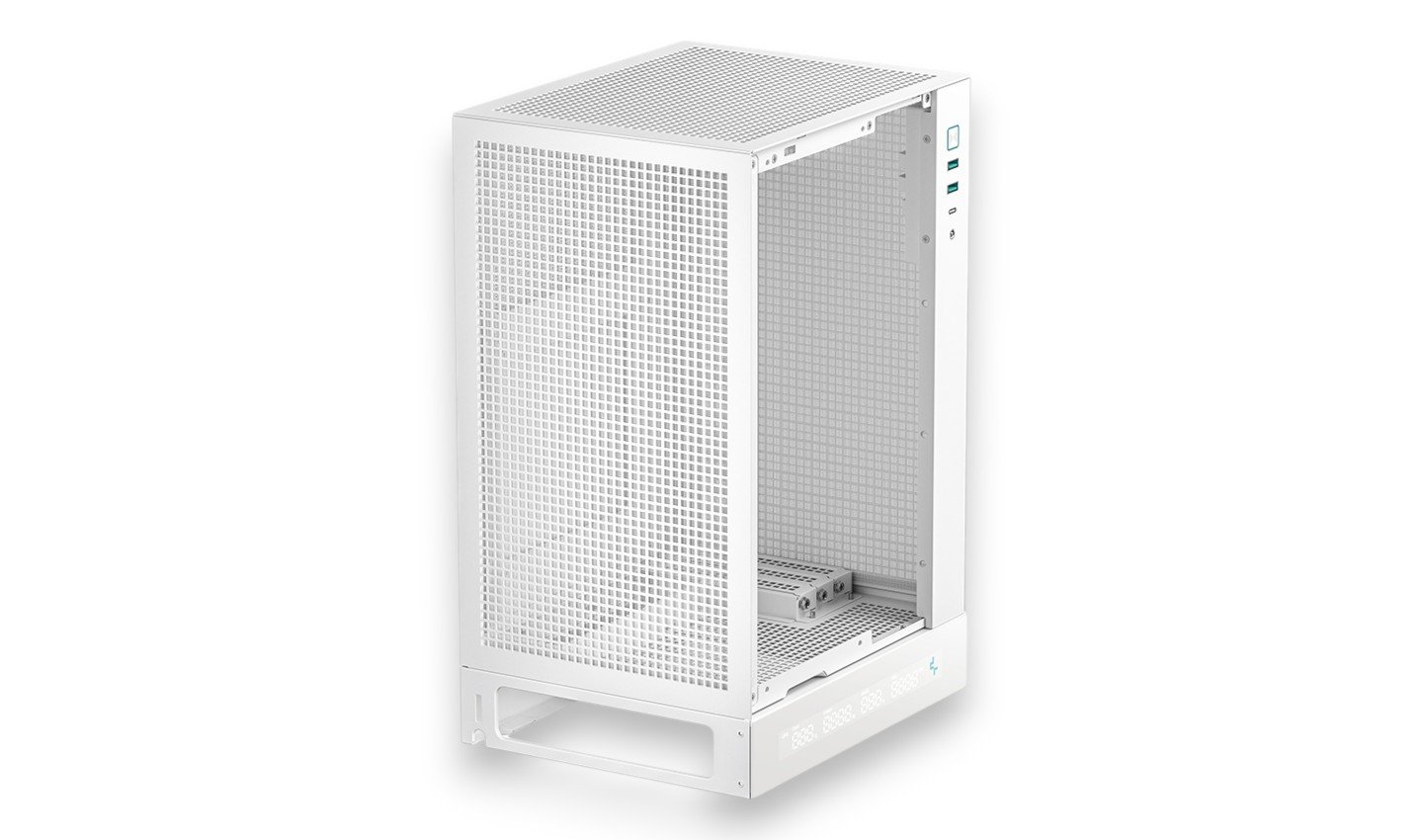

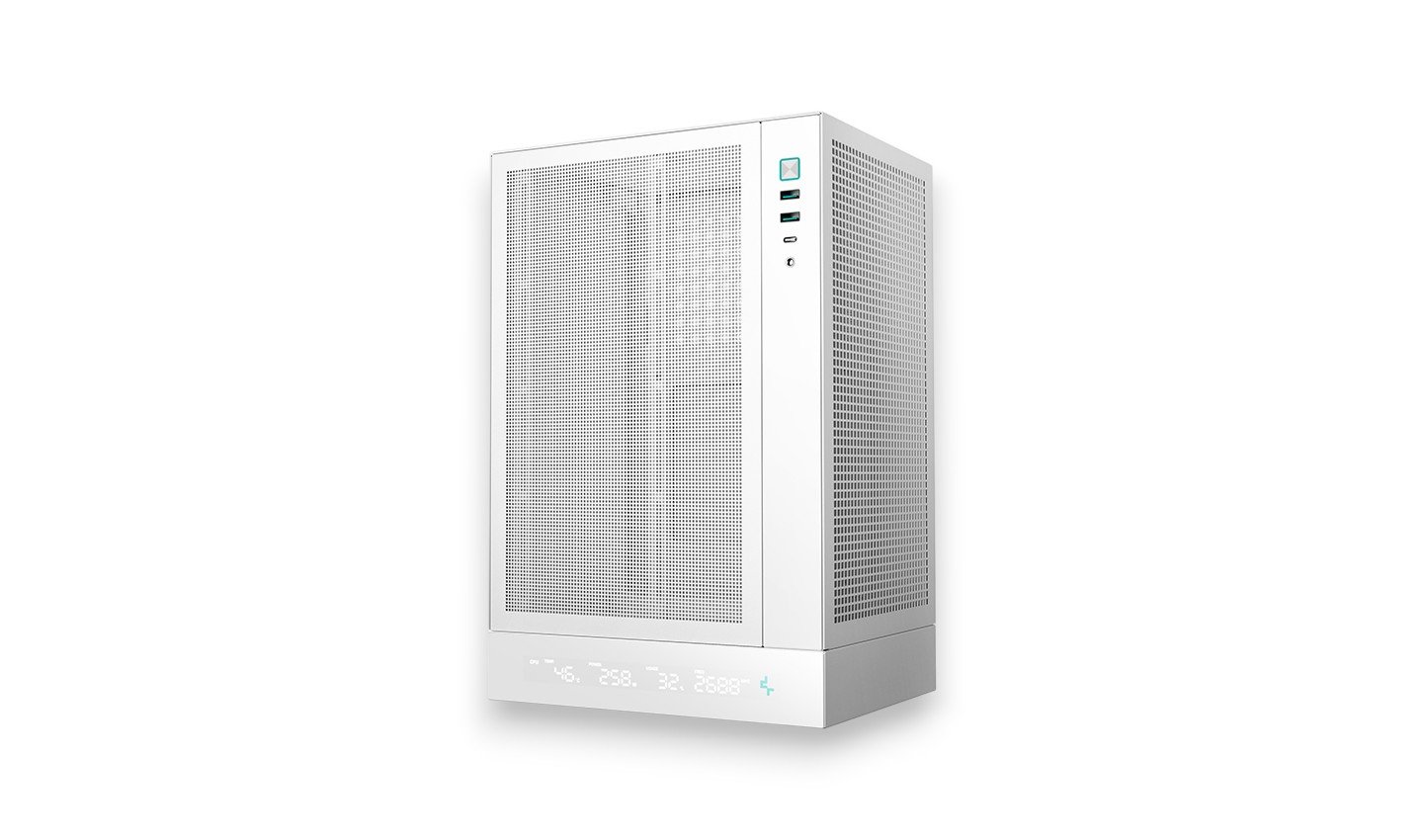

✔ Tiny Tower of Power – Vertical Mini-ITX case built for high performance in a small footprint with excellent airflow.
✔ High-Airflow Mesh Panels – Mesh surfaces wrap the case for maximum ventilation and cooling.
✔ Digital Base with Real-Time Monitoring – Displays CPU, GPU, and PSU stats including temperature, power draw, usage, frequency, and fan speed.
✔ Flexible Power Options – Supports ATX, SFX, and SFX-L PSUs up to 140mm.
✔ Customizable Pixel Creativity – Compatible with PIXEL rubber bits (sold separately) for a personalized case design.

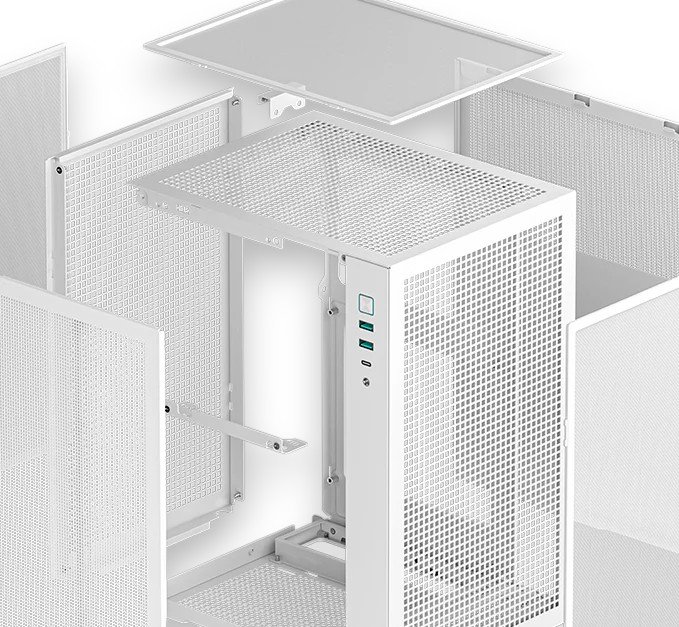

✔ Premium Build Features – Removable fan brackets, three dust filters, and multipurpose top bracket for fan, SSD, or HDD installation.
✔ Modern Connectivity – Two USB 3.0, Gen2 Type-C, and hybrid audio jack for future-proof front I/O.
✔ Unmatched Compatibility – Supports full-length GPUs up to 305mm (SFX PSU) / 230mm (ATX PSU), CPU coolers up to 172mm, and 240mm side radiator for liquid cooling.

📊 Specs – DeepCool CH170 DIGITAL WH

▸ Model: DeepCool CH170 DIGITAL WH
▸ Case Type: Mini-ITX
▸ Color: White
▸ Material: ABS + SPCC
▸ Motherboard Support: Mini-ITX
▸ Expansion Slots: 3
▸ Drive Bays: 1 (shared with fan bracket)
▸ Fan Support: Top: 1×120mm | Rear: 2×120mm | Bottom: 1×120mm | Side: 2×120mm
▸ Radiator Support: Side: 240mm
▸ CPU Cooler Height Limit: 172mm
▸ GPU Clearance: Length: 305mm (SFX PSU) / 230mm (ATX PSU); Height: 138mm; Width: 65mm (3 Slots)
▸ PSU Compatibility: ATX PS2 / SFX / SFX-L (Max Length 140mm)
▸ Front I/O Ports: 2×USB 3.0 | 1×Gen2 Type-C | 1×Hybrid Audio
▸ Dimensions (L×W×H): 250 × 200 × 380 mm
▸ Net Weight: 3.3 kg
▸ EAN / P/N: 6933412774228 / R-CH170-WHNPI0D-G-1

📦 Included in the Box
1 × DeepCool CH170 DIGITAL WH Mini-ITX Case
3 × Removable Dust Filters

⚡ Compact, airflow-optimized, and digital-display-ready — perfect for portable, high-performance Mini-ITX builds. 🎮💻
