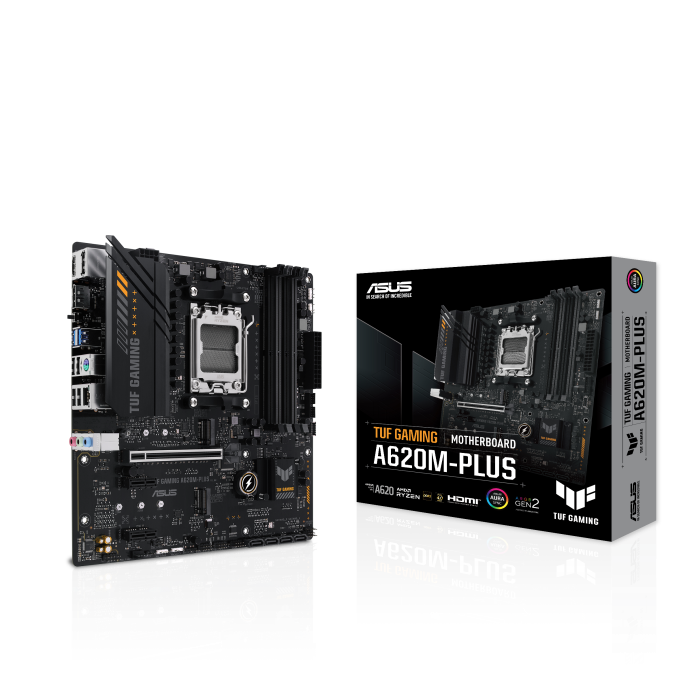

ASUS TUF GAMING A620M-PLUS AM5 Motherboard (DDR5 7600+ | PCIe 4.0

Information:

Built for durability and next-gen AMD performance, the ASUS TUF GAMING A620M-PLUS delivers DDR5 speed, PCIe 4.0 bandwidth, and military-grade reliability. It’s a perfect foundation for modern Ryzen gaming rigs and future-ready systems.

Description:

▸ SKU: A620M-PLUS
▸ Model: ASUS TUF GAMING A620M-PLUS
▸ Chipset: AMD A620A
▸ Socket: AM5
▸ CPU Support: Ryzen™ 9000 / 8000 / 7000 Series (Up to 170W)
▸ Memory: 4× DDR5 up to 192GB (7600+ MT/s OC)
▸ Memory Features: Dual Channel, EXPO, AEMP, ECC & Non-ECC (On-Die ECC)
▸ Graphics Output: 2× DisplayPort (8K@30Hz), 1× HDMI (4K@60Hz)
▸ Expansion Slots:
  • 1× PCIe 4.0 x16
  • 1× PCIe 3.0 x1
▸ Storage:
  • 2× M.2 PCIe 4.0 x4
  • 4× SATA 6Gb/s
▸ RAID: 0 / 1 / 5 / 10
▸ LAN: Realtek 2.5Gb Ethernet
▸ Wireless: Not Included
▸ USB (Rear): 2× USB 10Gbps + 4× USB 2.0
▸ USB (Front): USB-C 5Gbps + USB 5Gbps + USB 2.0 headers
▸ Audio: Realtek 7.1 HD Audio (24-bit/192kHz)
▸ Cooling Headers: CPU Fan + 2× Chassis Fan
▸ Power Connectors: 24-pin ATX + 8-pin CPU
▸ RGB: 3× Addressable Gen 2 + 1× Aura RGB
▸ PCB: 6-Layer Design
▸ Form Factor: Micro-ATX (24.4 × 24.4 cm)
▸ OS Support: Windows 10 / 11
