DeepCool 750W POWER SUPPLY PSU

Information:

PM750D 750 Watt, Non-Modular ,80 Plus Gold Certified Power Supply / PSU For Gaming PC

Description:

SKU: R-PM750D-FA0B
📍Description

▸ Type:  ATX12V V2.4, Dimensions:  150x140x86mm (W x L x H)
 ▸ Output Capacity:  750W
 ▸ Fan Bearing:  Hypro Bearing
 ▸ Topology:  Active PFC + Full Bridge SRC LLC + DC to DC
 ▸ Efficiency:  90% at 50% Load
 ▸ Hold Up Time:  ≥16ms (75% Load)
 ▸ Operating Temperature:  0-40°C
 ▸ MTBF:  100,000 hours

 Specs:
▸ Total Wattage:  750W
 ▸ Number of +12V Rails:  1
 ▸ Efficiency Rating:  80 PLUS Gold
 ▸ Form Factor:  ATX
 ▸ Cable Design:  Flat

 Connectors:
▸ 1x 20+4-Pin ATX Motherboard
▸ 2x 4+4-Pin EPS CPU
▸ 3x 6+2-Pin PCIe
▸ 6x 15-Pin SATA
▸ 3x 4-Pin Peripheral/Molex

 Cable Distances:
▸ PCIe Connector:  19.7” / 500mm
 ▸ SATA Connector:  17.7” / 450mm, 22.4” / 570mm, 27.2” / 690mm
 ▸ Peripheral Connector:  17.7” / 450mm, 22.4” / 570mm, 27.2” / 690mm
 ▸ ATX Connector:  21.7” / 550mm
 ▸ EPS Connector:  24” / 610mm

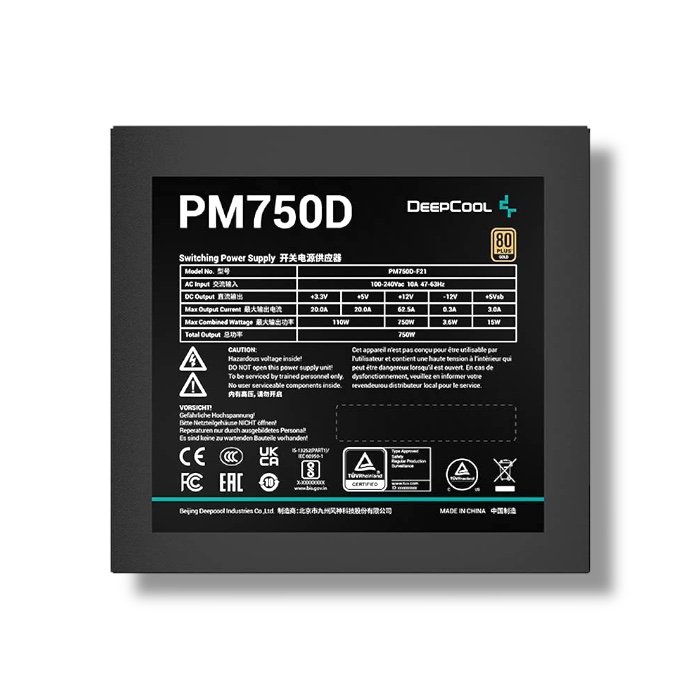

 Electrical:
▸ Combined Power for +12V:  750W
 ▸ Max Load for +12V:  62.5A
 ▸ Combined Power for +3.3/+5V:  110W
 ▸ Max Load for +3.3V:  20A
 ▸ Max Load for +5V:  20A
 ▸ Max Power for +5Vsb:  15W
 ▸ Max Load for +5Vsb:  3A
 ▸ Max Power for -12V:  3.6W
 ▸ Max Load for -12V:  0.3A
 ▸ AC Input Power:  100 to 240VAC, 50/60Hz at 10A

 Cooling:
▸ Fan Size:  120mm
 ▸ Bearing Type:  Hypro

 Protection:
▸ Over-Current, Over-Power, Over-Temperature, Over-Voltage, Short-Circuit, Under-Voltage Protection

 Certifications:
▸ TUV, CCC, CE, FCC, UKCA, EAC, BIS, RCM, CAN, ICES, ErP

Dimensions:
▸ 5.9 x 3.4 x 5.5 inches / 150 x 86 x 140 mm
