MSI PRO H510M-B Motherboard – LGA 1200

Information:

10th & 11th Gen Intel® CPU Support | DDR4 64GB | HDMI & VGA | M.2 Slot | PCIe 3.0 | USB 5Gbps | Realtek Audio | EZ Debug LED

Description:

SKU: 911-7E05-010
📍Description

Features
✔ Supports 10th & 11th Gen Intel® CPUs (Core™, Pentium® Gold, Celeron®) –  LGA 1200 Socket
 ✔ DDR4 Dual-Channel Memory –  Up to 64GB, speeds up to 2933MHz
 ✔ Core Boost –  Optimized power design for stable multi-core CPU performance
 ✔ Memory Boost –  Clean and efficient data signals for better compatibility
 ✔ Audio Boost –  Realtek® ALC897 codec with 7.1-Channel High-Definition Audio
 ✔ Steel Armor PCIe Slot –  Reinforced for GPU protection and reduced EMI
 ✔ Storage Flexibility –  1× M.2 PCIe 3.0 x4 + 4× SATA III (6Gbps)
 ✔ Video Outputs –  HDMI™ (4K @30Hz) + VGA (Legacy Support)
 ✔ EZ Debug LED –  Quick diagnostics for CPU, RAM, VGA, Boot
 ✔ Gigabit Ethernet –  Realtek® 8111H for reliable wired networking
 ✔ Compact Micro-ATX –  Ideal for efficient and powerful PC builds

 Expert Specs
▸ CPU Socket:  LGA 1200
 ▸ Chipset:  Intel® H510
 ▸ Supported CPUs:  Intel® 10th / 11th Gen Core™, Pentium® Gold, Celeron®
 ▸ Memory:
 • 2× DDR4 DIMM Slots
 • Max 64GB
 • Up to 2933MHz (10th Gen) / Up to 3200MHz OC (11th Gen)

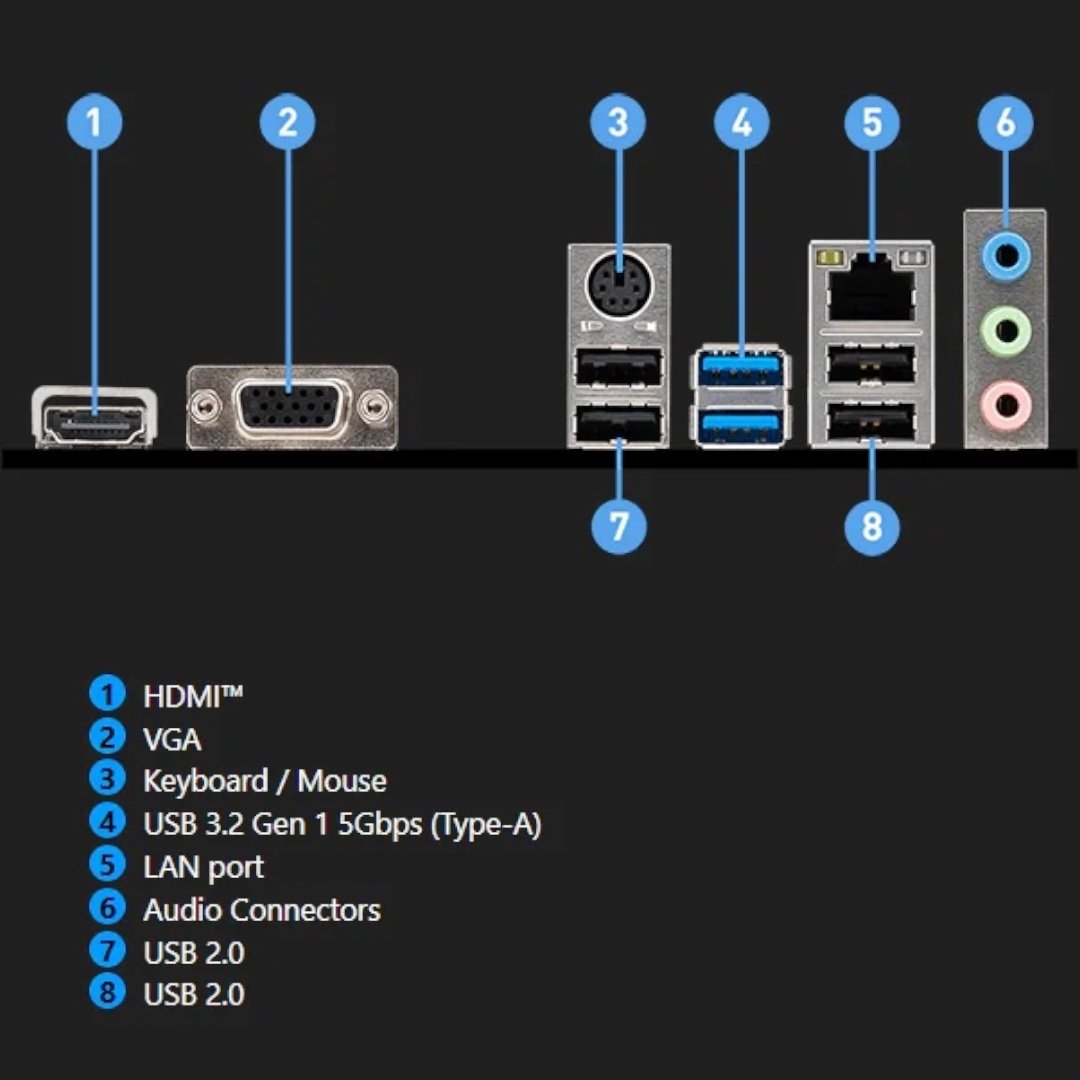

 ▸ Graphics Outputs:
 • 1× HDMI™ (4K @30Hz)
 • 1× VGA (Up to 1920×1200 @60Hz)
 ▸ Expansion:
 • 1× PCIe 3.0 x16 (Steel Armor)
 • 1× PCIe 3.0 x1
 ▸ Storage:
 • 1× M.2 PCIe 3.0 x4
 • 4× SATA III 6Gbps
 ▸ Audio:
 • Realtek® ALC897
 • 7.1-Channel HD Audio
 ▸ LAN:
 • Realtek® 8111H Gigabit LAN
 ▸ USB:
 • Rear: 4× USB 3.2 Gen 1, 2× USB 2.0
 • Front Headers: USB 3.2 Gen 1 & USB 2.0
 ▸ Form Factor:  Micro-ATX (mATX), 23.6cm × 20.0cm

 Special Features
▸ Core Boost, Memory Boost, Audio Boost
▸ EZ Debug LED for fast troubleshooting
▸ Steel Armor PCIe for GPU stability
▸ Designed for compact, efficient, and high-performance PC builds
