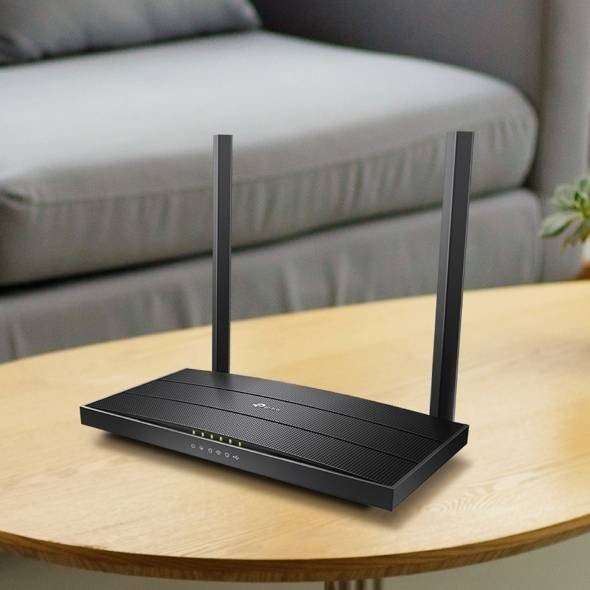

TP-Link XC220 AC1200 Dual-Band Wireless VoIP XPON Router

Information:

💡 TP-Link XC220 AC1200 Dual-Band Wireless VoIP XPON Router | GPON 2.5Gbps | 4× Gigabit LAN | VoIP | IPTV | OneMesh

Description:

🎯  Features – Ultra-Fast Fiber with VoIP & IPTV
✔ Superfast Dual-Band Wi-Fi – Up to 1.2 Gbps (867 Mbps on 5GHz + 300 Mbps on 2.4GHz)
✔ High-Speed GPON Connectivity – Supports 2.488 Gbps downstream / 1.244 Gbps upstream
✔ Full Gigabit Ports – 4× 10/100/1000 Mbps LAN for ultra-fast wired performance
✔ Built-in VoIP Functionality – FXS port for seamless internet-based calling
✔ Easy Remote Management – OMCI & TR-069 for quick setup & monitoring
✔ Stable & Secure – VLAN, IEEE 802.1q, WPA/WPA2 encryption & WDS Bridge support
✔ IPTV Ready – Optimized for 4K streaming & real-time gaming
✔ Mesh Networking – OneMesh compatible for whole-home Wi-Fi coverage
✔ Customizable Controls – Wireless scheduling, radio on/off, WMM & detailed statistics

⸻

📊  Specs – TP-Link XC220-G3V
▸ Model: TP-Link XC220-G3v AC1200 Wireless VoIP XPON Router
▸ Wireless Standards: IEEE 802.11ac/n/a (5GHz), IEEE 802.11b/g/n (2.4GHz)
▸ Frequency: Dual Band – 2.4GHz & 5GHz
▸ Signal Rate: 867 Mbps (5GHz) + 300 Mbps (2.4GHz)
▸ Transmission Power: 2.4GHz (26dBm EIRP), 5GHz (27dBm EIRP)

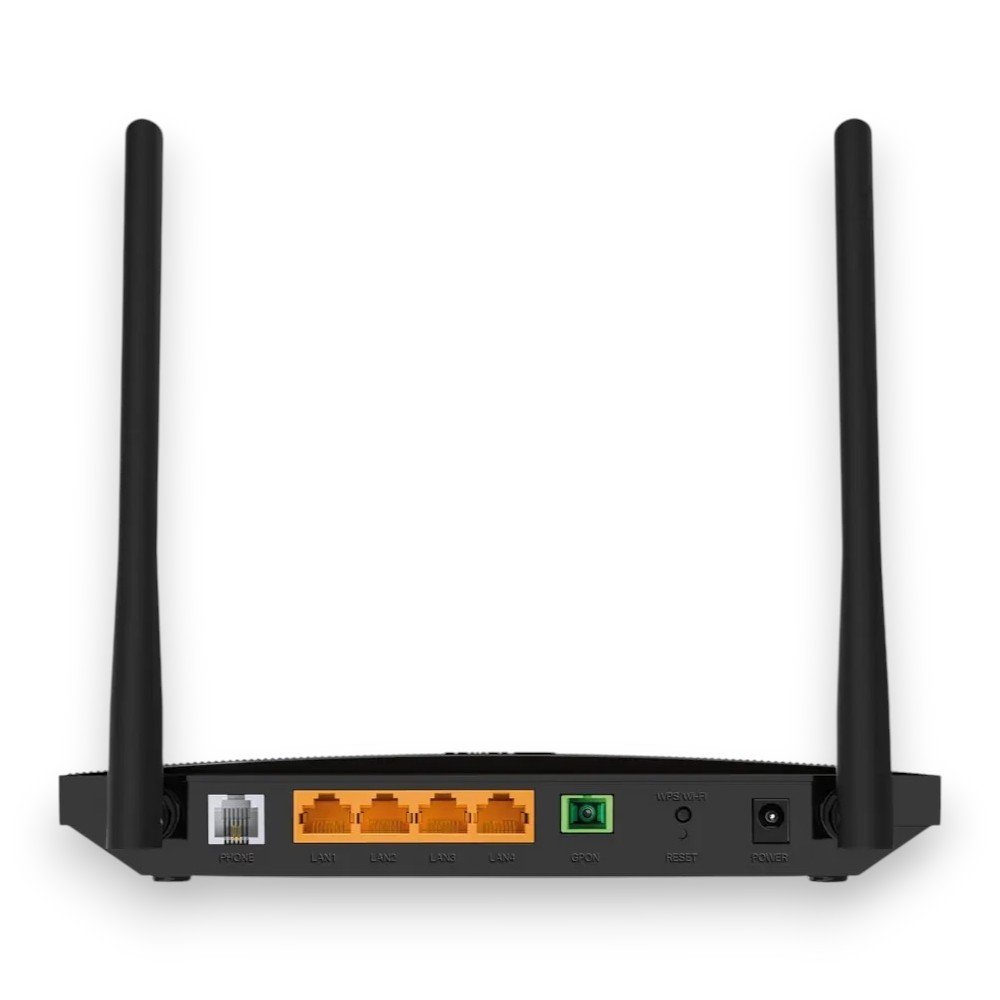

▸ Ports: 4× Gigabit LAN, 1× FXS VoIP port
▸ GPON Speed: 2.488 Gbps Down / 1.244 Gbps Up
▸ Security: WPA/WPA2, WPA-PSK/WPA2-PSK
▸ Wireless Functions: WDS Bridge, WMM, Wireless Statistics, Enable/Disable Radio
▸ Wireless Schedule: Supported on both 2.4GHz & 5GHz
▸ Mesh Support: TP-Link OneMesh compatible
▸ Management: OMCI, TR-069, Remote Management
▸ Use Case: Internet, IPTV, VoIP, Gaming, Streaming

⸻

⚡ The TP-Link XC220 delivers blazing fiber speeds with VoIP, IPTV, and OneMesh support—perfect for modern homes and businesses needing reliable, all-in-one connectivity.
