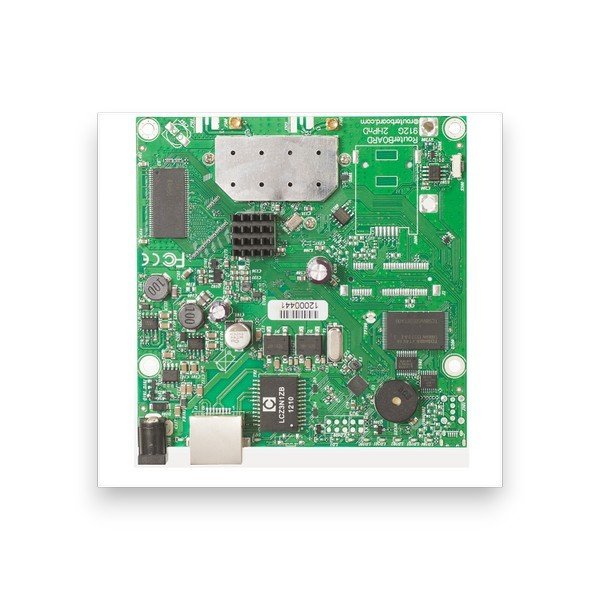

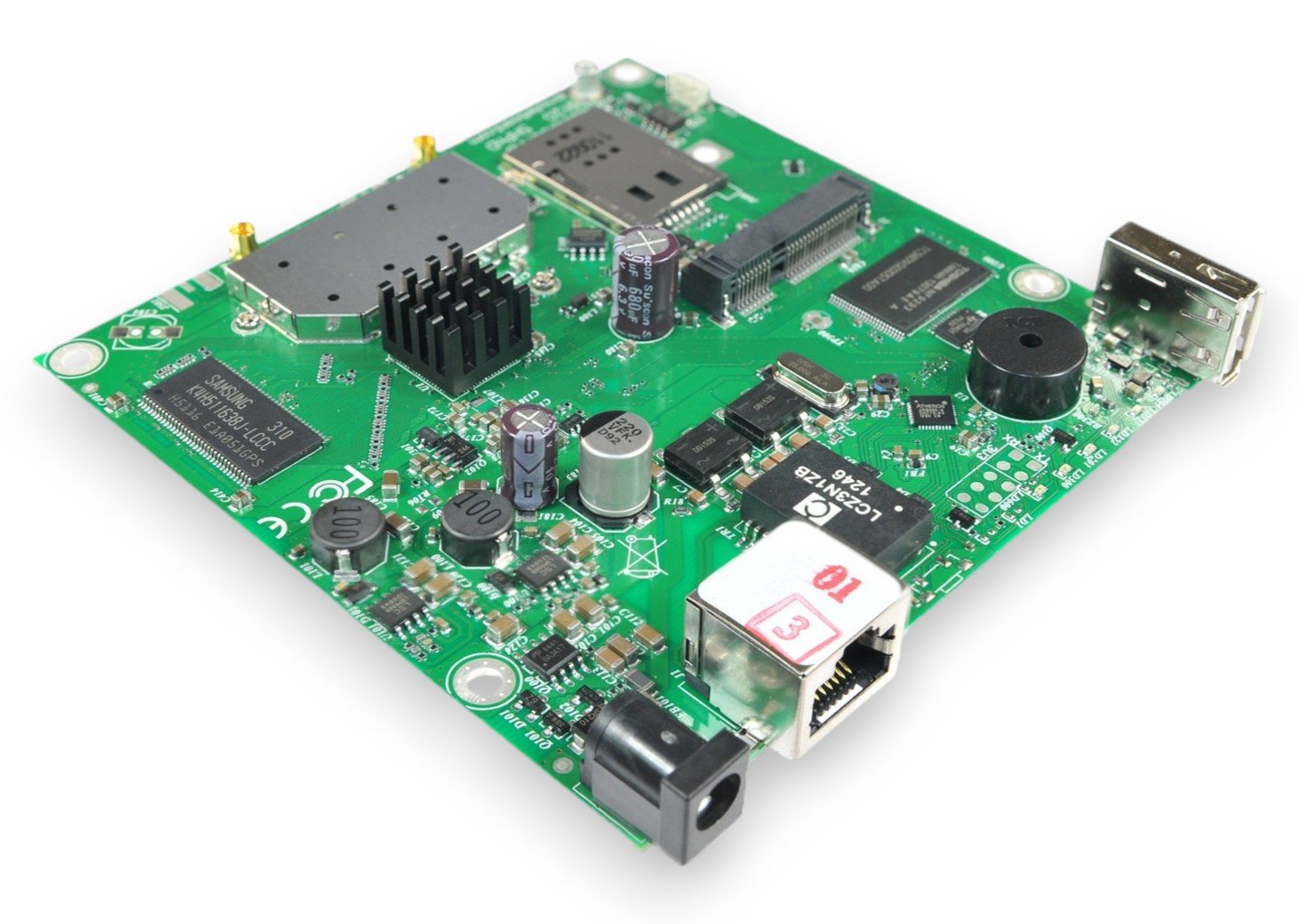

MicroTick Routerboard RB912UAG-2HPnD 600MHz CPU

Information:

💡 MicroTick Routerboard RB912UAG-2HPnD | 600MHz CPU, 64MB RAM, 1x Gigabit Ethernet, 2.4GHz Wireless, miniPCIe, USB, SIM Slot, RouterOS L4

Description:

🎯  Features – Rugged, Versatile, Expandable
✔ Powerful 600MHz CPU: Smooth performance with a single-core processor
✔ Memory & Storage: 64MB RAM and 128MB NAND storage for reliable operation and fast data handling
✔ Gigabit Ethernet Port: Maximizes wired network speeds
✔ Built-in 2.4GHz Wireless: Wi-Fi 4 (802.11b/g/n) with speeds up to 300Mbps
✔ MiniPCIe Slot: Expandable with additional 802.11 wireless cards, mobile cards, or LoRa modules
✔ SIM Slot: Supports mobile modems for internet connectivity anywhere
✔ ESD Protection: 16kV protection on Ethernet and MMCX ports
✔ Rugged & Durable: Wide operating temperature range (-40°C to 70°C) and passive cooling
✔ PoE Support: Power over Ethernet (8-30V) reduces cable clutter
✔ RouterOS L4: Advanced networking and management features included
✔ Compact Design: Small 105x105mm footprint for tight spaces
✔ USB & Power Reset: USB port for peripherals and USB-powered reset function

⸻

📊  Specs – MicroTick RB912UAG-2HPnD
▸ Product Code: RB912UAG-2HPnD
▸ CPU: AR9342, 600MHz single-core
▸ RAM: 64MB
▸ Storage: 128MB NAND
▸ Ethernet Port: 1× Gigabit
▸ Wireless: 2.4GHz Wi-Fi 4 (802.11b/g/n), 300Mbps max
▸ MiniPCIe Slot: 1×
▸ SIM Slot: 1× Mini SIM
▸ USB Port: 1× Type-A, max current 1A
▸ Power Input: PoE (8-30V), DC Jack (8-30V)
▸ Max Power Consumption: 13.5W
▸ Operating Temperature: -40°C to 70°C
▸ MTBF: 100,000 hours at 25°C
▸ Certification: FCC, IC
▸ Dimensions: 105 × 105 mm

⸻

⚡ The MicroTick RB912UAG-2HPnD is a compact, robust, and highly expandable routerboard—perfect for mobile or industrial networking applications.
