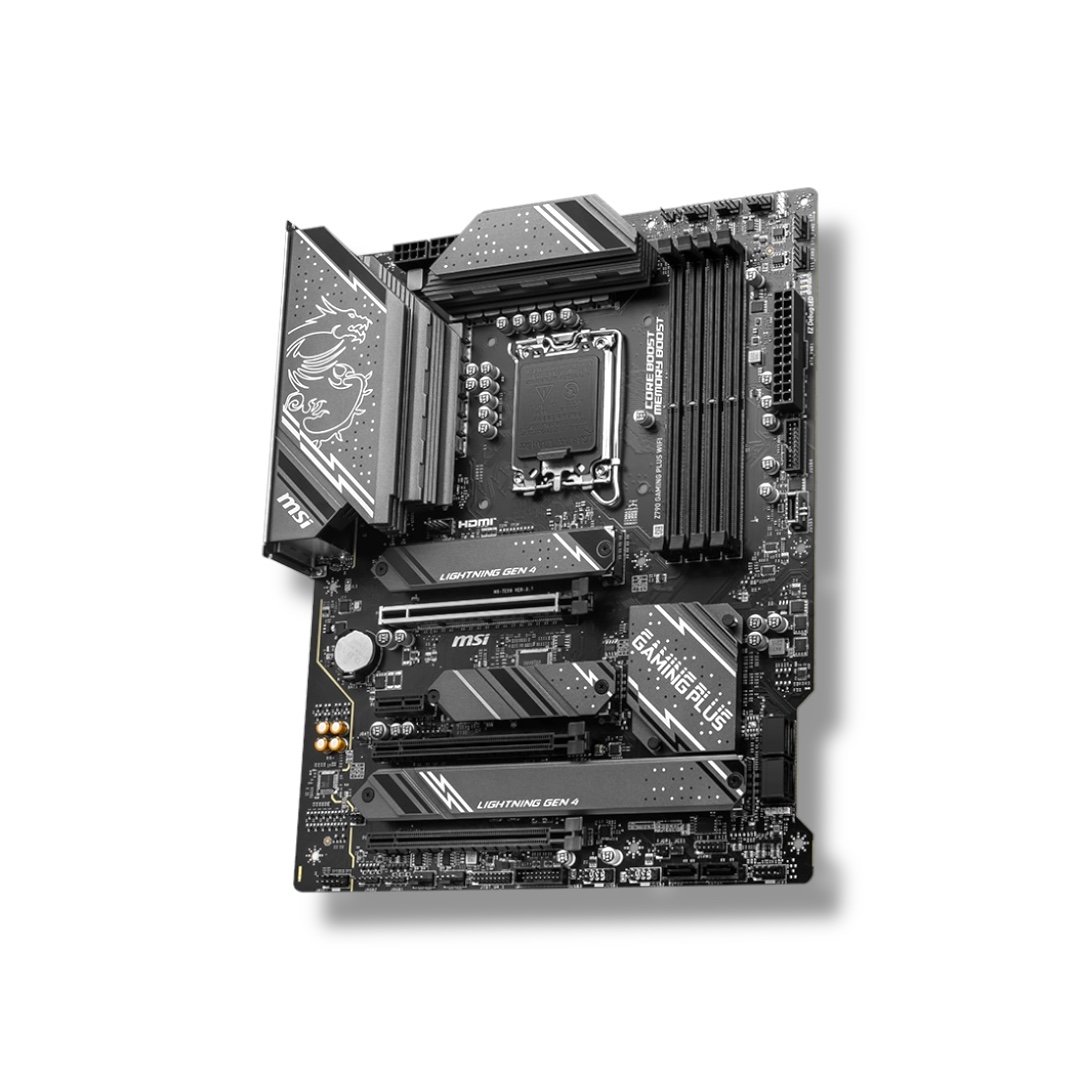

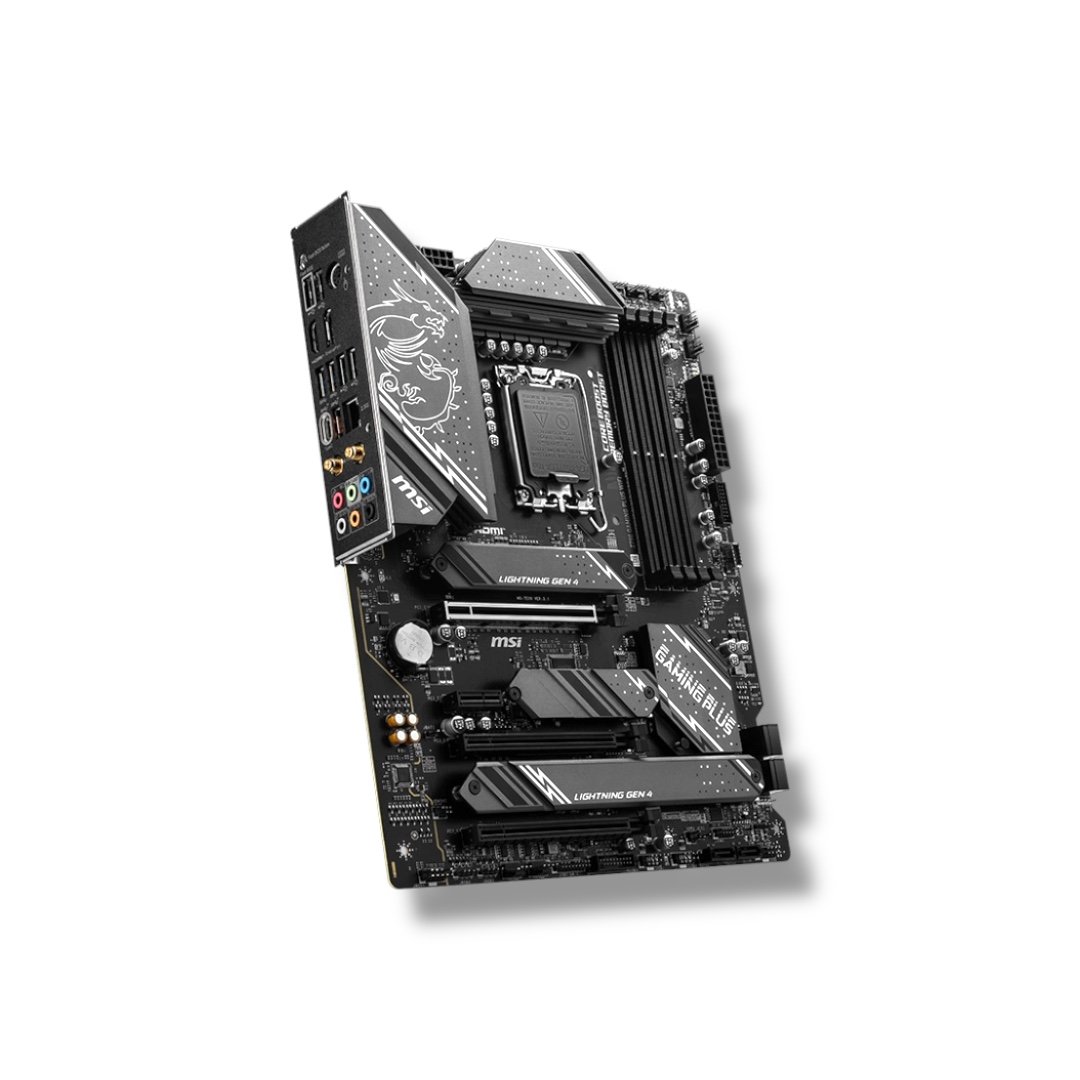

MSI Z790 Gaming Plus WiFi Motherboard

Information:

MSI Z790 Gaming Plus WiFi 6E ATX Supports Intel core 14th/13th/ 12th Gen DDR5 Memory Boost 7200+MHz/OC 4 X M.2 Gen4

Description:

SKU: 911-7E06-075
📍Description

▸ Processor Support:  Compatible with Intel® Core™ 14th/13th/12th Gen, Pentium® Gold, and Celeron® processors (LGA 1700).
 ▸ Memory:  4 DDR5 slots supporting up to 256GB with speeds up to 7200+ MHz (OC) via Intel® XMP 3.0 and dual-channel configuration.
 ▸ Power & Cooling:  Enhanced 14+1+1 Duet Rail Power System with DrMOS and dual 8‑pin CPU connectors; premium thermal solution with extended heatsinks, 7W/mK MOSFET thermal pads, extra choke pads, and M.2 Shield Frozr.
 ▸ Storage:  4 M.2 slots (various modes from PCIe 4.0 to SATA) plus 6 SATA 6Gb/s ports with RAID 0/1/5/10 support for ultrafast and flexible storage options.
 ▸ Expansion Slots:  3 PCIe x16 slots (including a PCIe 5.0 x16 from the CPU) and 1 PCIe x1 slot for versatile expansion.
 ▸ Connectivity:  Intel® 2.5Gbps LAN, pre‑installed Wi‑Fi 6E with Bluetooth® 5.3, and high‑speed USB ports including USB 3.2 Gen2×2 Type‑C (20Gbps) and USB 20Gbps Type‑C.
 ▸ Audio & Video:  Realtek® ALC897 7.1‑channel HD audio; HDMI™ 2.1 (HDR, 4K@60Hz) and DisplayPort 1.4 (4K@60Hz) outputs for integrated graphics (if supported by the CPU).
 ▸ I/O Connectivity:  Comprehensive rear I/O with ports for keyboard/mouse, LAN, audio, multiple USB (2.0, 3.2 Gen1/Gen2, and Gen2×2 Type‑C), plus a Flash BIOS button; extensive internal headers for fans, RGB LED, TPM, and more.
 ▸ Operating System:  Fully supports Windows® 11 and Windows® 10 (64‑bit).
 ▸ Form Factor:  ATX design measuring 243.84 mm x 304.8 mm.

 A premium gaming motherboard engineered for high‑performance, next‑gen connectivity, advanced cooling, and immersive audio—ideal for gamers and power users alike.
