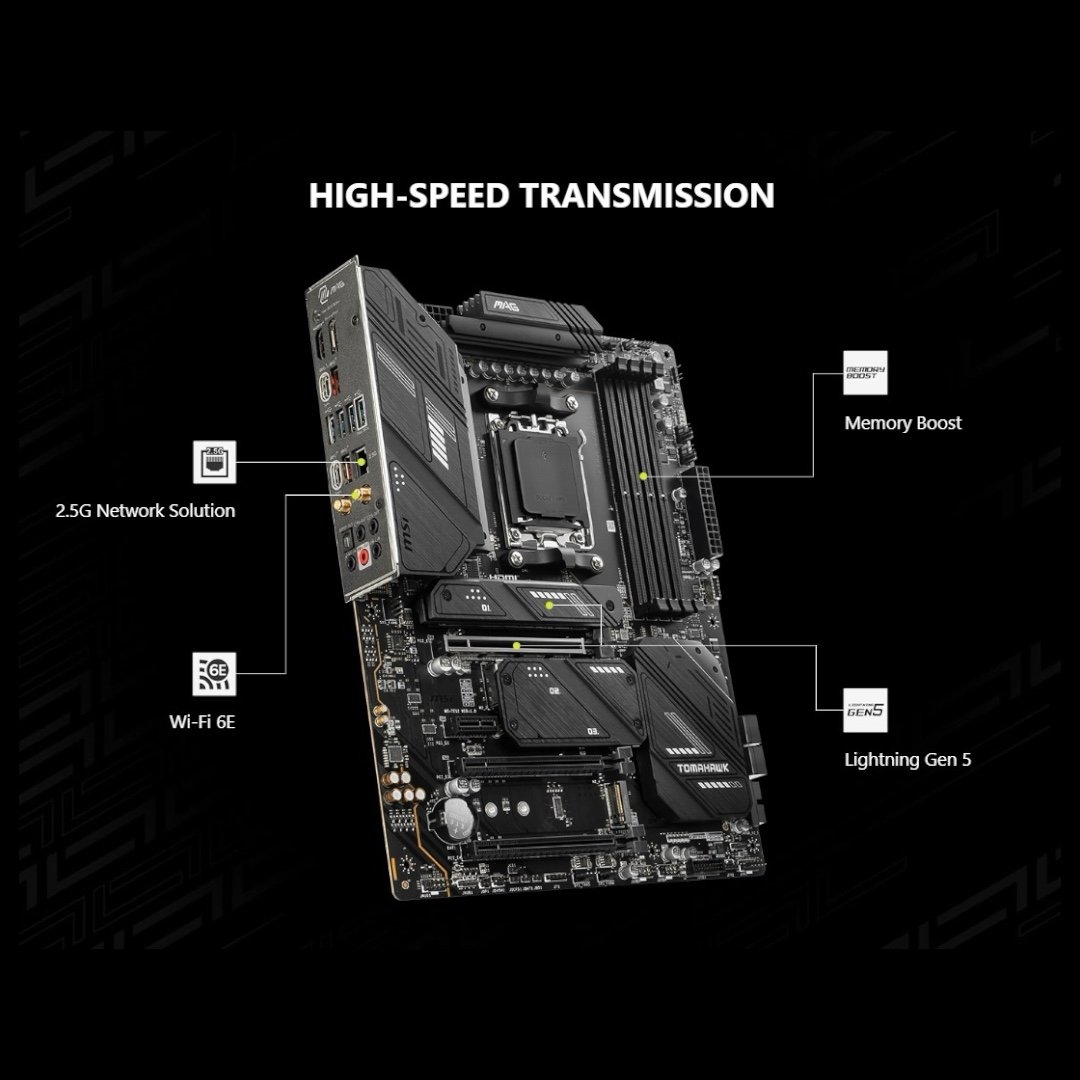

MSI MAG X670E TOMAHAWK Motherboard

Information:

Msi TOMAHAWK Supports DDR5 Memory, up to 7800+(OC) MHz AMD X670 Socket AM5 ATX

Description:

SKU: 911-7E12-010
📍Description

▸ Processor Support:  AMD AM5 socket – Supports Ryzen™ 7000/8000/9000 Series Desktop Processors
 ▸ Power & VRM:  Twin 12+2+2 phases digital VRM for stable power delivery
 ▸ Memory:  4 DDR5 DIMM slots supporting up to 128GB; speeds up to DDR5 6400+ MHz (OC) with AMD EXPO™ & Intel® XMP support
 ▸ Expansion Slots:
  - 1 PCIe 4.0 x16 slot (supports x16/x4/x2 modes) from CPU
  - 1 PCIe 3.0 x1 slot from the chipset
 ▸ Storage:  4 SATA 6Gb/s ports and 4 M.2 slots
  - M.2_1 (from CPU): PCIe 5.0 x4, supports 22110/2280 devices
  - M.2_2, M.2_3, M.2_4 (from chipset): PCIe 4.0 x4 (M2_4 runs at x2 if PCI_E4 is in use)
 ▸ RAID Support:  RAID 0/1/10 for both SATA and NVMe (M.2) devices
 ▸ Audio:  Realtek ALC1200 7.1-channel high-definition audio
 ▸ Networking:  Realtek RTL8125BG 2.5GbE LAN; Wi‑Fi 6E (pre‑installed in M.2 Key‑E slot) and Bluetooth 5.3
 ▸ Rear I/O:
  - Q‑Flash Plus button, DisplayPort, HDMI
  - USB Type‑C (USB 3.2 Gen2), USB 3.2 Gen2 Type‑A (red)
  - Additional USB 3.2 Gen1 and USB 2.0 ports, RJ‑45 port, and audio jacks
 ▸ Internal I/O:  Multiple headers for USB (Type‑C, Gen1, 2.0), fan connectors (CPU, pump, system), front panel, RGB LED (addressable and standard), TPM, reset, and Clear CMOS
 ▸ Form Factor:  ATX, 12.0″ x 9.6″
 ▸ LED Feature:  4 EZ Debug LEDs
 ▸ Power Connectors:  24‑pin ATX, 8‑pin ATX 12V, and 4‑pin ATX 12V connectors
 ▸ Software:  Fully supports Windows® 11

 A high‑performance, feature‑rich ATX motherboard engineered for gamers and enthusiasts, delivering robust connectivity, high‑speed storage, and immersive audio on the AMD B650 platform.
