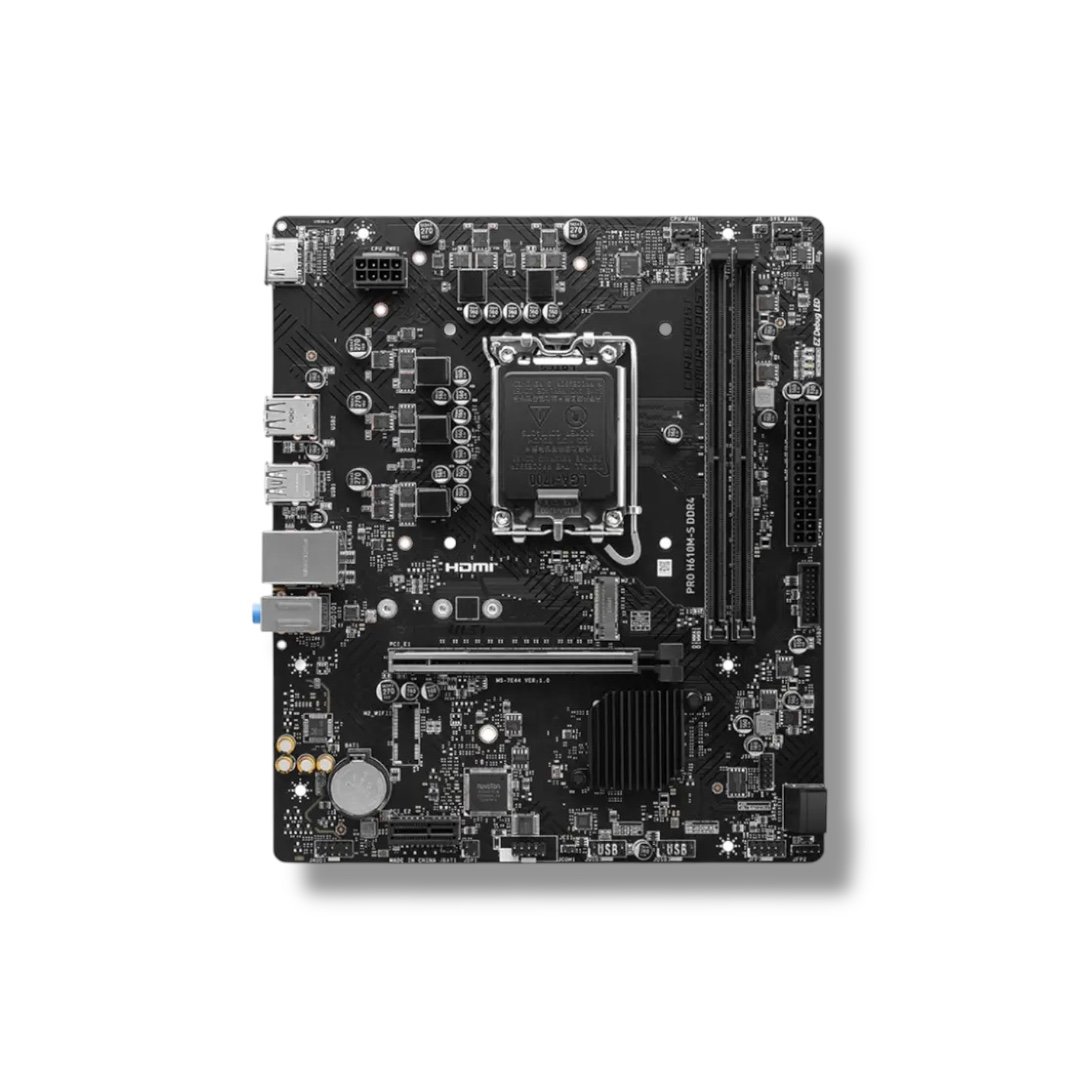

MSI PRO H610M-S DDR4

Information:

Supports 14th/13th/12th Gen Intel Core | PCIe 4.0 | M.2 Gen3 | HDMI & VGA | USB 3.2 Gen1

Description:

SKU: Msi-H610M-S
📍Description

Features

✔ Intel LGA 1700 Support –  Compatible with 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors.
 ✔ DDR4 Memory Support –  Up to 64GB of dual-channel DDR4 memory (Max 3200 MHz via JEDEC).

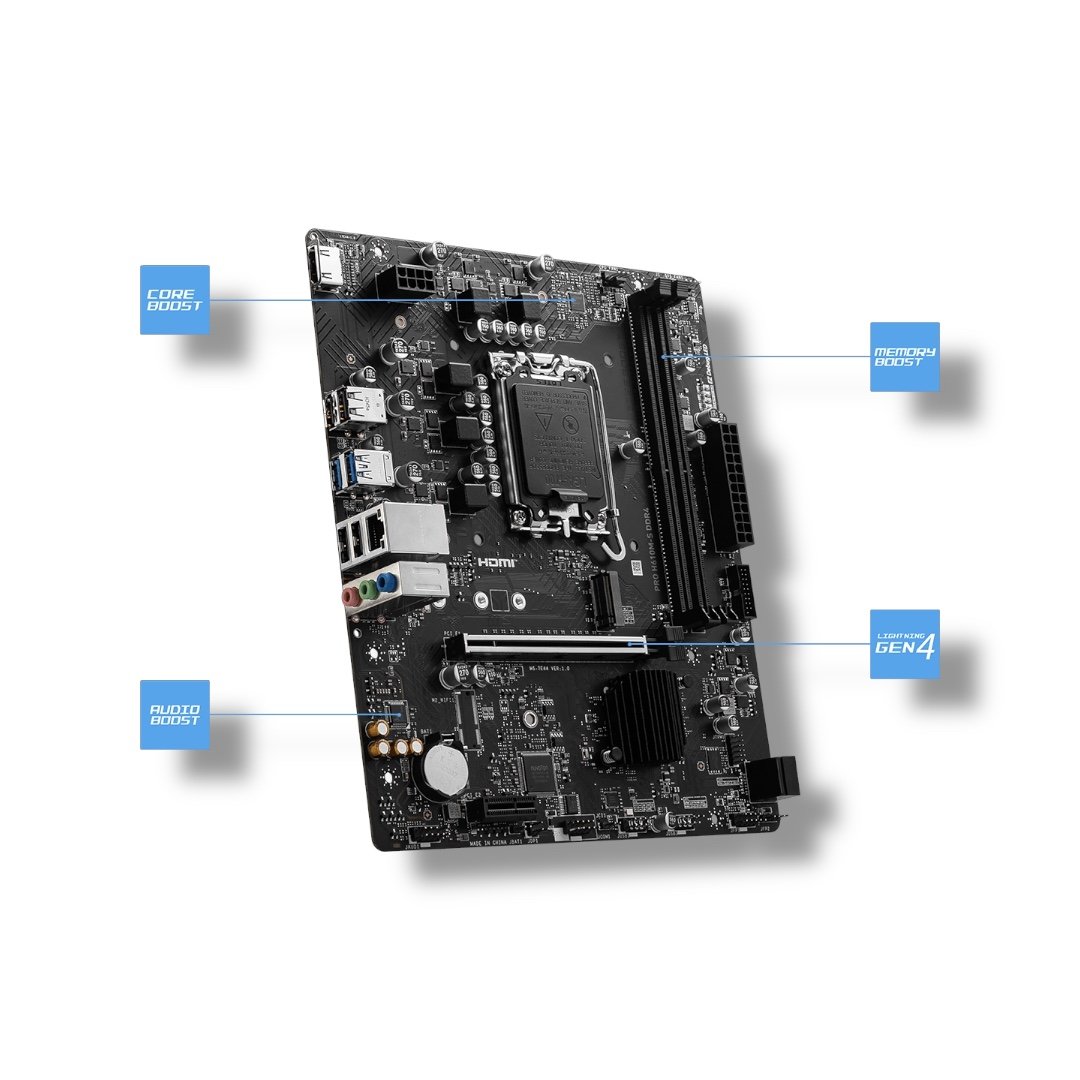

 ✔ Core Boost Technology –  Premium layout and digital power design for enhanced performance and stability with multi-core CPUs.
 ✔ Memory Boost –  Delivers clean data signals for maximum performance and reliability.
 ✔ PCIe 4.0 x16 Slot –  High-speed expansion for graphics cards with up to 64Gb/s bandwidth.
 ✔ M.2 Gen3 x4 Slot –  Lightning-fast storage for NVMe SSDs, supports 2280/2260/2242 form factors.
 ✔ Steel Armor PCIe Slot –  Reinforced VGA slot for superior durability against GPU sag and EMI interference.
 ✔ Audio Boost –  Integrated Realtek® ALC897 Codec delivers 7.1-channel high-definition studio-grade sound.
 ✔ Comprehensive Connectivity –  HDMI™ 1.4, VGA, USB 3.2 Gen1, USB 2.0, Gigabit LAN, TPM 2.0 support.
 ✔ EZ Debug LEDs –  Onboard diagnostic LEDs help you identify hardware issues easily.

 Specs

General
▸ Chipset:  Intel® H610
 ▸ Form Factor:  Micro-ATX (mATX)
 ▸ PCB Size:  200mm × 236.16mm
 ▸ Socket:  LGA 1700
 ▸ Operating System Support:  Windows® 11 64-bit, Windows® 10 64-bit

 CPU Support
▸ Intel® Core™ 14th / 13th / 12th Gen
▸ Intel® Pentium® Gold & Celeron®

 Memory
▸ 2× DDR4 DIMM Slots (Dual-Channel)
▸ Max Capacity: 64GB
▸ Supported Speeds: DDR4 1866 – 3200 MHz (JEDEC)
▸ Non-ECC, Un-buffered Memory Support

 Graphics Output
▸ HDMI™ 1.4 – Up to 4K @ 30Hz (HDR, depends on CPU)
▸ VGA Port

 Expansion Slots
▸ 1x PCIe 4.0 x16 Slot (From CPU)
▸ 1x PCIe 3.0 x1 Slot (From Chipset)

 Storage
▸ 1x M.2 Gen3 x4 (2280/2260/2242)
▸ 2x SATA 6Gb/s Ports

 Audio
▸ Realtek® ALC897
▸ 7.1-Channel High Definition Audio

 LAN
▸ Realtek® RTL8111H Gigabit LAN (1G LAN)

 USB Ports
▸ Rear:
 – 2x USB 3.2 Gen1 Type-A (5Gbps)
 – 4x USB 2.0
 ▸ Front:
 – 2x USB 3.2 Gen1
 – 4x USB 2.0

 Internal Headers
▸ 1x ATX Power (24-pin)
▸ 1x CPU Power (8-pin)
▸ 1x CPU Fan Header
▸ 1x System Fan Header
▸ 2x Front Panel (JFP1/JFP2)
▸ 1x Chassis Intrusion (JCI)
▸ 1x Front Audio (JAUD)
▸ 1x COM Port Header (JCOM)
▸ 1x TPM Header (Supports TPM 2.0)
▸ 4x USB 2.0 Headers

 Back Panel I/O
	1.	HDMI™
	2.	USB 3.2 Gen1 x2
	3.	USB 2.0 x2
	4.	VGA Port
	5.	LAN (1G)
	6.	Audio Connectors
